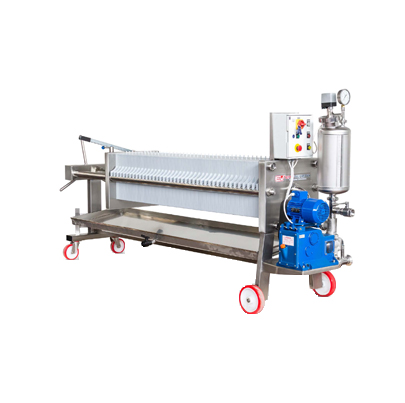

STANDARD FEATURES:
- AISI 304 stainless steel frame on wheels
- Inlet and outlet piping with ball valves and pressure gauges
- AISI 304 stainless steel collecting basin with draining valve
- Filtering pack with polypropylene plates
- Manual hydraulic closure
- AISI 304 stainless steel piston feed pump with expansion vessel, safety valve, pressure switch and manometer
- Electric panel 400/3/50
OPTIONALS:
-
- Liquid detection probe
- Polypopylene blind plate
| FRP-40-20 | FRP-40-30 | FRP-40-40 | FRP-50-30 | FRP-50-40 | FRP-50-50 | |
|---|---|---|---|---|---|---|
| Plates dimensions[mm] | 400×400 | 400×400 | 400×400 | 500×500 | 500×500 | 500×500 |
| Plates number | 20 | 30 | 40 | 30 | 40 | 50 |
| Filtering surface m2 | 4.4 | 6.6 | 8.8 | 10.5 | 14.0 | 17.5 |
| Must flow rate hl/h | 2.6-8.8 | 3.9-13.2 | 5.2-17.6 | 6.3-21.0 | 8.4-28.0 | 10.5-35.0 |
| Dregs flow rate hl/h | 1.3-3.9 | 1.9-5.9 | 2.6-7.9 | 3.1-9.4 | 4.2-12.6 | 5.2-15.7 |
| Installed power kW | 0.75 | 0.75 | 0.75 | 2.20 | 2.20 | 2.20 |
