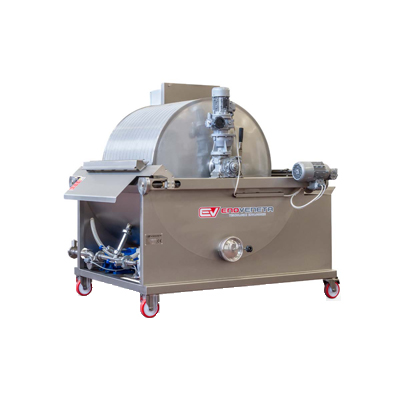

Drum with reps filtering cloth and plunged
extraction pump
CHARACTERISTICS:
- AISI 304 stainless steel frame on wheels
- Drum with reps filtering cloth and plunged extraction pump
- Pre-cake preparation tank
- Tank washing system
- AISI 304 stainless steel centrifugal feed pump
- Cast iron vacuum pump
- 400/3/50 control panel
| TECHNICAL DATA | SV3 | SV5 | SV8 | SV10 | SV15 | SV20 | |
|---|---|---|---|---|---|---|---|
| Must flow rate |
hl/h |
3.75 – 10 | 7.5 – 20 | 10 – 32 | 15 – 40 | 22.5 – 60 |
30 – 80 |
| Dregs flow rate |
hl/h |
2.50 – 3.75 | 5- 7.50 | 8 – 12 | 10 – 15 | 15 – 22 .5 |
20 – 30 |
| Installed power |
kW |
5.3 | 8.4 | 13 | 13 | 15.5 |
21.3 |
| Filtering surface |
m2 |
2.5 | 5 | 8 | 10 | 15 |
20 |
| Lenght |
mm |
2700 | 3200 | 3950 | 4400 | 4460 |
5400 |
| Depth |
mm |
1350 | 1400 | 1800 | 1800 | 2300 |
2300 |
| Hight |
mm |
1450 |
1450 | 1450 | 1850 | 2200 |
2200 |
| Tank diameter |
mm |
– |
– | 1300 | 1400 | 1600 |
1800 |
| Tank height |
mm |
– |
– | 1500 | 1650 | 2000 |
2000 |
| Tank capacity |
V |
– |
– | 1000 | 1500 | 2500 |
3000 |
