STANDARD FEATURES

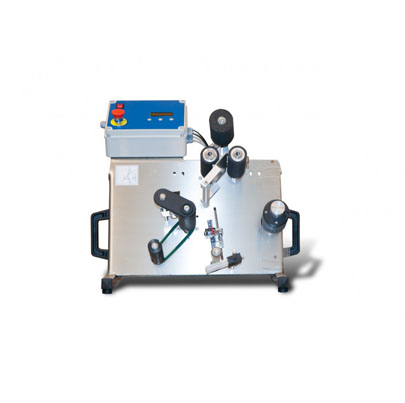

TR-EKO10 is a semi-automatic table-top labelling machine, able to stick front and back label during the same cycle. This machine allows to label round glass bottles but also square bottles, pots and other plastic products. With appropriate options it is possible to read reference marks, to stick a label later, to label square bottles, to stick transparent labels and to install a stamping unit.
It is in conformity with EC safety standards and the electronic board with microprocessor enables to use different labelling variants.
The basic version only sticks one label.
TECHNICAL DATA
Dimensions 550mm x 400mm x 500mm (h)
Weight kg 40
Tensiunea de alimentare: 230V – 50Hz (opt. 110V – 60Hz)
Installed Power 0,2 kW
Sound level 40 decibel
Hour production 700 b/h
Max. label height 140mm (opt. 190mm)
Max. label length 280mm (opt. 340mm)
Round bottle diameter 50-120mm (opt. 20mm - 200mm)
Square bottle side 35-100mm
