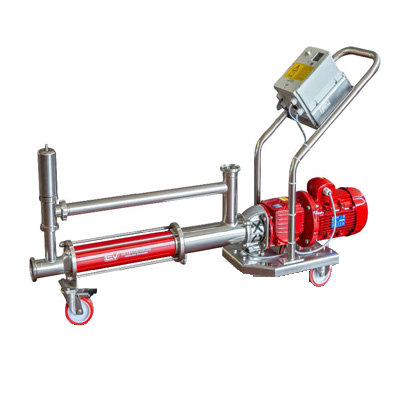

The Mohno pumps from Enoveneta are available in version with loading hopper (version T) and without hopper (version I), intended for transfer of food liquids.
CHARACTERISTICS:
- AISI 304 stainless steel stand
- AISI 304 stainless steel pump body
- Food safe stator
- Stainless steel AISI 304 feeding hopper with auger
- Level probe for automatic start and stop of the pump
- 400/3/50 control panel with reverse feature
OPTIONALS:
-
- Mechanical speed variator (T 608, T609, T 610, T 612)
- Electronic speed variator
- Enzymes dosing pump
- Safety pressure switch
| TECHNICAL DATA | T 608 | T 609 | T 610 | T 612 | T 613 | T 614 | |
|---|---|---|---|---|---|---|---|
| Installed power | kW | 3.0 | 5.5 | 7.5 | 9.2 | 15.0 | 22.0 |
| Hourly output | Ton/h | 10/12 | 20/25 | 30/40 | 45/55 | 80/90 | 100/120 |
| Rotations per minute | rpm | 200 | 200 | 200 | 200 | 200 | 150 |
| Fitting | DIN | 100 | 100 | 120 | 120 | 125 | 150 |
