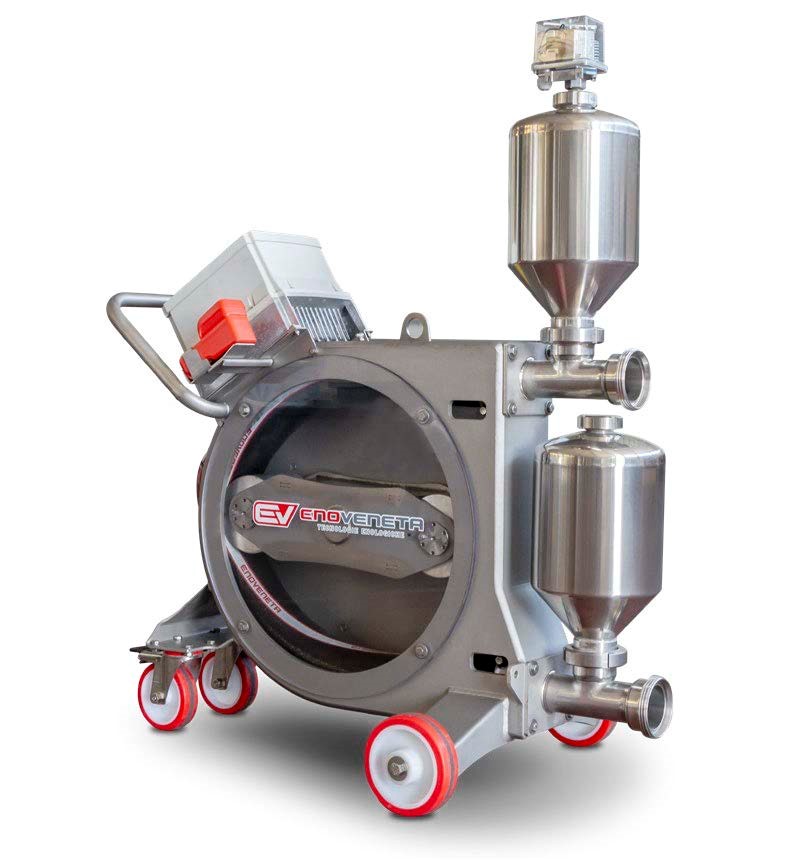

This pump is used for the transfer of wine, must, whole or crushed grapes or fermented pasta.
STANDARD FEATURES:
- AISI 304 stainless steel stand
- AISI 304 stainless steel pump body
- Double roller rotor on bearings (PEV 60-150-280)
- Triple roller rotor on bearings (PEV 450)
- Two triple roller rotor on bearings (PEV 700)
- Food safe peristaltic rubber tube (double on PEV 700) with TCA-TBA and FDA certifications
- Double expansion vessel
- Electric panel 400/3/50 complete of electronic speed variator, cable remote control and reverse feature
OPTIONALS:
- Motorized screw hopper
- By-pass with mechanical valve
- Safety pressure switch
- Liters counter
- Barrique filling system
- Membrane expansion vessel
- Remote radio control
- Remote control arrangement for filling line or other device
| TECHNICAL DATA | PEV 60 | PEV 150 | PEV 280 | PEV 450 | PEV 700 | |
|---|---|---|---|---|---|---|
| Rotor revolutions per minute | rpm | 19/63 | 12/60 | 14/49 | 16/50 | 15/55 |
| Liquids flow rate | Ton/h | 1/6 | 2/14 | 7/25 | 12/45 | 15/70 |
| Debit bobite zdrobite | Ton/h | – | 1/10 | 4/18 | 9/33 | 9/49 |
| Debit bobite intregi | Ton/h | – | – | 2/14 | 2/25 | 4/30 |
| Fermented mass flow rate | Ton/h | – | – | 1/8 | 1/15 | 2/18 |
| Fittings | DIN | 50 | 65 | 80 | 100 | 100 |
| Motor power auger | kW | 1.5 | 3.0 | 4.0 | 7.5 | 7.5 |
| Installed power | kW | – | 0.55 | 1.10 | 1.10 | 2.20 |
| Peristaltic tube diameter | mm | 45 | 55 | 75 | 90 | 2×75 |
| Rollers no. | nr | 2 | 2 | 2 | 3 | 3+3 |
| Pump dimensions | mm | 1050x650x900 | 1100x650x1100 | 1450x850x1400 | 1840x1050x1670 | 1700x950x1400 |
| Hopper dimensions | mm | – | 980x780x450 | 1000x830x460 | 1000x830x485 | 1000x1100x460 |
| Weight | kg | 120 | 200 | 340 | 640 | 750 |
